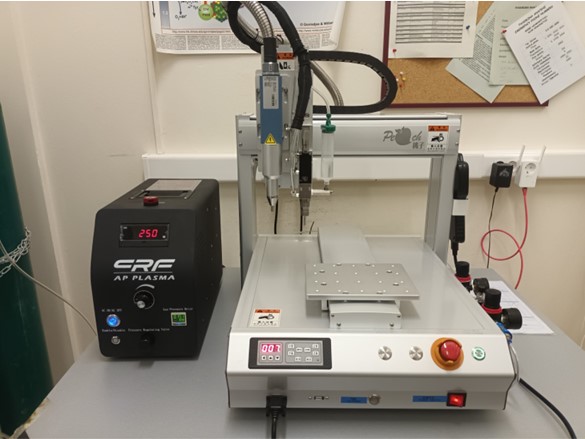

Atmospheric pressure plasma jet
Tool
CRF-APO-R＆D-DXX-PW, CRF
Applications
- Surface cleaning / de-contamination
- Oxide / contaminant removal / deoxidation
- Surface activation / functionalization (improving adhesion, wettability)
- Pre-treatment for printing / coating / dispensing
- Plasma etching / removal of unwanted layers
- Bonding / adhesion enhancement / priming
- Grafting / surface modification / functional coatings
Technical Specifications
| Parameter | Specification |
| Power supply | 220 V AC, 50/60 Hz |
| Power factor | 0.8 |
| Internal control mode | Digital control |
| External control mode | I/O start/stop (ON/OFF) |
| Operating gas | Compressed air (0.4 MPa) or nitrogen (optional) |
| Processing / treatment height | 5 – 15 mm |
| Processing / treatment width | 1 – 6 mm (depending on nozzle) |
| Direct jet nozzle options | 2 – 6 mm interchangeable nozzles |
Additional Tools
- 3-axis dispersing system (3310) Taozi
- Low temperature plasma spray nozzle
Images
