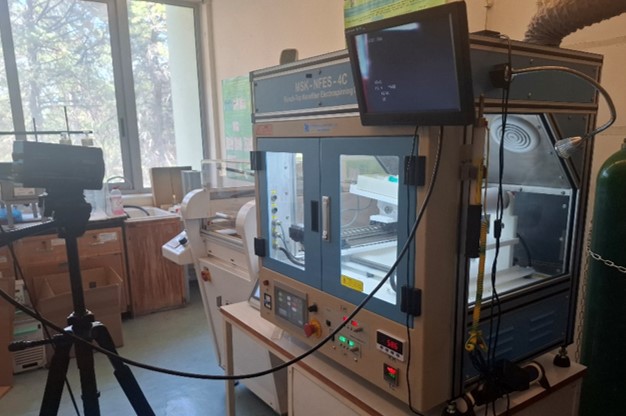

Bench-top Electrospinning system
Tool
MSK-NFES-4C, SHENYANG KEJING AUTO-INSTRUMENT CO., LTD.
Applications
- Biomedical / Tissue Engineering
- Filtration / Air / Liquid Filters
- Sensor / Electronics / Smart Textile
- Energy / Batteries / Supercapacitors
- Composites / Reinforced Materials
- Controlled Release / Encapsulation
- Optics / Photonics / Light Emitting Applications
- Membrane / Barrier Films
- Catalysis / Surface Functionalization
Technical Specifications
| Parameter | Specification |
| Power supply (input) | 220 V, 50 Hz |
| High voltage power supply | +50 kV (positive), –20 kV (negative), continuously adjustable |
| Temperature control | Room temperature to +50 °C |
| Dehumidification | 280 W dehumidifier function |
| Syringe pump | Flow 0.0001 – 0.9 mm/s; max syringe Ø 50 mm; 20 mL standard (30/50 mL optional); travel 0.01 – 90 mm |
| Motion / nozzle positioning | X‑axis 100 mm, Y‑axis 220 mm; pump inclination adjustable manually |
| Collection roller / drum | Speed 400 – 4,400 rpm (step 30 rpm); φ 80 mm × 200 mm drum |
| Dimensions & Weight | 800 × 700 × 925 mm; weight ≈ 75 kg |
| Construction | Corrosion‑resistant materials, stable voltage output, anti‑interference design |
| Features / extras | Multi‑nozzle and collector options; 1‑, 2‑, or 5‑channel pumps; suitable for viscous polymers |
| Safety / usage | Includes high‑voltage safety interlocks; ground discharge before maintenance; do not operate with door open |
Additional Tools
- XY plate collector: X/Y 1–10 mm/s; Auto X 1–20 mm/s, Y 1–10 mm/s; sample 1–180 mm × 1–180 mm; layer spacing 0.1–100 mm
- Co-axial spinnerets
Images
