Electrochemical Workstation
Tool

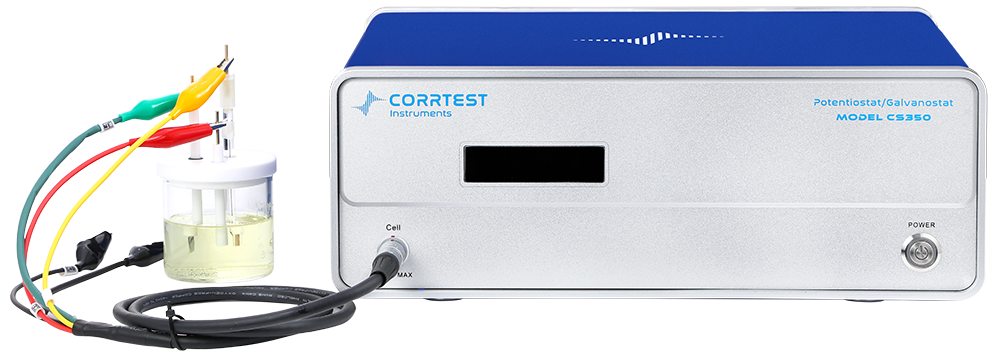

Electrochemical Workstation Model CS350/ Corrtest
Applications
- Corrosion & Corrosion Engineering
- Energy Materials & Storage Devices
- Electrochemical Analysis & Sensors
- Electrosynthesis, Electrodeposition, Anodic Oxidation
- Fundamental Electrochemistry & Mechanistic Studies
- High-Impedance / Coating or Barrier Systems
- On-line & In-Situ / Floating Measurements
- Rapid Screening / Automation / Combined Experiments
Technical Specifications
| Parameter | Specification |
| Electrode configuration | 2-, 3-, or 4-electrode system |
| Potential control range | ±10 V (optional ±12 V) |
| Current control range | ±2 A |
| Compliance voltage | ±21 V |
| Potential control accuracy | 0.1 % of full range ±1 mV |
| Current control accuracy | 0.1 % of full range |
| Potential resolution | 10 µV (>100 Hz), 3 µV (<10 Hz) |
| Current resolution | 1 pA |
| Rise time | <1 µs (<10 mA), <10 µs (up to 2 A) |
| Reference electrode impedance | 10¹² Ω || 20 pF |
| Current ranges | 2 nA – 2 A over 10 ranges |
| Scan / sweep rate | 0.001 mV/s – 10,000 V/s |
| CA / CC pulse width | 0.0001 s – 65,000 s |
| SWV frequency range | 0.001 – 100 kHz |
| EIS frequency range | 10 µHz – 1 MHz |
| AC amplitude (EIS) | 0.1 mV – 2,500 mV |
| DC bias (EIS) | –10 V to +10 V |
| Waveform types | Sine, triangular, square |
| Wave distortion | < 1 % |
| Data acquisition | 16-bit @1 MHz; 20-bit @1 kHz |
| Minimum potential increment | 0.075 mV |
| Interface / OS | USB 2.0; compatible with Windows OS |
| Dimensions & Weight | 36.5 × 30.5 × 16 cm; ~6.5 kg |
Additional Tools
Various electrodes
