Plasma DBD system
Tool

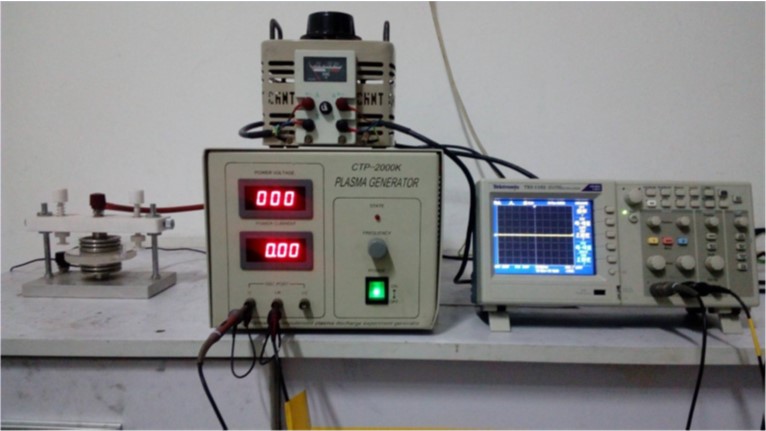

CTP-2000K, Nanjing Suman Plasma Technology Co.,Ltd
Applications
- Surface Activation & Cleaning
- Surface Functionalization / Chemical Modification
- Polymer and Composite Modification
- Catalysis and Energy Materials
- Environmental Applications
- Biomedical & Antibacterial Surfaces
- Microelectronics & Thin Film Processing
- Gas Conversion & Plasma Chemistry Research
Technical Specifications
| Parameter | Specification |
| Power output | 1,000 – 3,000 W adjustable |
| Ultrasonic frequency | 20 kHz |
| Amplitude / power adjustment | 20 % – 100 % variable |
| Processing capacity | 5 – 10 L (depending on liquid viscosity and probe size) |
| Working mode | Continuous or pulsed operation |
| Cooling system | External water cooling recommended for long-duration operation |
| Probe / horn material | Titanium alloy (Ti‑6Al‑4V) |
| Control system | Digital power controller with LCD interface |
| Display parameters | Power, time, amplitude, and temperature (if equipped with sensor) |
| Application modes | Batch or flow-through with optional circulation cell |
| Protection features | Overload, overtemperature, and no-load protection |
| Input voltage | AC 220 V, 50/60 Hz |
Additional Tools
- Gas/Gas-Liquid/Gas-Solid Reactor

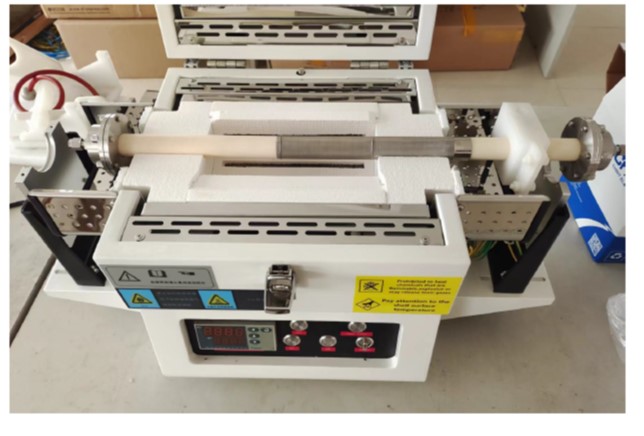

- High Temperature Coaxial Single DBD Reactor (Room Temperature~500 ℃)
- Tubular Heating Furnace Digital Oscilloscope
Images
